Zeichensatz UTF-8+Z1013()+CTRL()-ohne Umlaute(äöüß)
10!***************************
20!* *
30!* PRAEZISIONSWIDERSTAENDE *
40!* *
50!***************************
60!
70! SCHUETZ,GREIFSWALD
80!
90 WINDOW :CLS
100 WINDOW 9,31,0,31
110 PRINT AT(0,0);STRING$(32,"=")

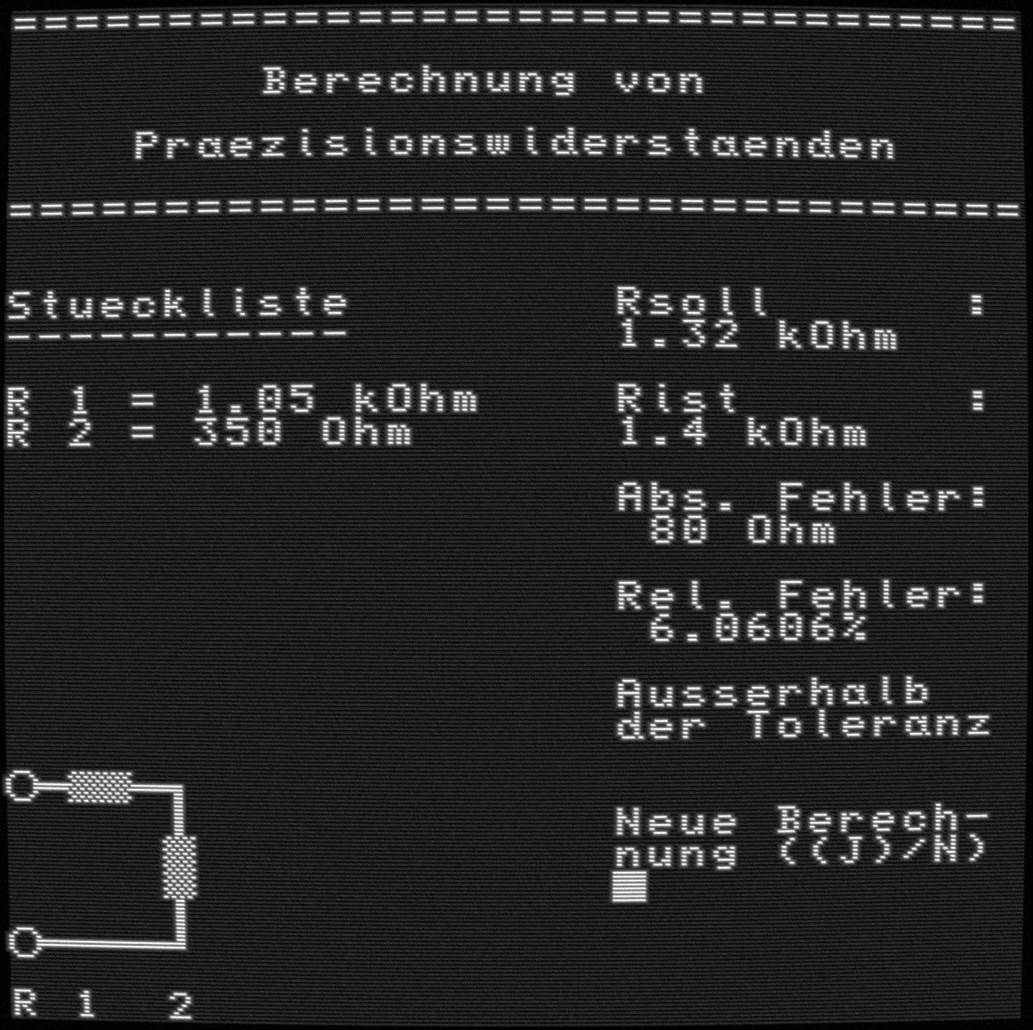

120 PRINT AT(2,8);"Berechnung von"
130 PRINT AT(4,4);"Praezisionswiderstaenden"
140 PRINT AT(6,0);STRING$(32,"=")
150!
160! Initialisierung
170!
180 DIM NW(96),VNW(96)
190 DIM PL(8),RI(8),RJ(8),ZW(8)
200 FOR I=0 TO 95 : NW(I)=INT(100*10^(I/96)+0.5): NEXT I
210 GOTO 1120
220!
230!Berechnen des benoetigten : ! Normwertes
240!
250 POT=0.001
260 IF POT<=REST/10 THEN : POT=POT*10 :GOTO 260
270 J=0
280 IF VNW(J)*POT<REST THEN : J=J+1 : GOSUB 350: GOTO 280
290 OBW=VNW(J)*POT : J=J-1
300 IF J<0 THEN : J=E-1 :POT=POT/10
310 UNW=VNW(J)*POT
320 RETURN
330!
340!
350 IF J=E THEN : POT=POT*10 :J=0
360 RETURN
370!
380! Messwert-Eingabe
390!
400 PRINT: PRINT: PRINT "Rechenwert R";I;"= ";
410 Y=RI(I) :GOSUB 500: : PRINT X;X$: X$="": PRINT
420 INPUT "Messwert : ";X$
430 IF X$="" THEN MW=ZW(I) :ELSE: GOSUB 570: ZW(I)=X :MW=X
440 Y=MW :GOSUB 500
450 PRINT AT(11+I,0);STRING$(19," "):PRINT AT(11+I,0);"R",I,"=",X,X$
460 RETURN
470!
480! Umwandlung d. Wid.
490!
500 IF Y<1E3 THEN : X =Y/1E0 :X$="Ohm" :RETURN
510 IF Y<1E6 THEN : X =Y/1E3 :X$="kOhm" :RETURN
520 IF Y<1E9 THEN : X =Y/1E6 :X$="MOhm" :RETURN
530 X =Y/1E9 :X$="GOhm" :RETURN
540!
550! Umwandlung d. Eingabe
560!
570 X=VAL(X$)
580 IF INSTR("K",X$)<>0 THEN : X=X*1E3 :RETURN
590 IF INSTR("k",X$)<>0 THEN : X=X*1E3 :RETURN
600 IF INSTR("M",X$)<>0 THEN : X=X*1E6 :RETURN
610 IF INSTR("G",X$)<>0 THEN : X=X*1E9
620 RETURN
630!
640!
650 IF RJ(I)<0 THEN : RGES=1/(1/RGES+1/ABS(RJ(I))): RETURN
660 RGES=RGES+RJ(I) : RETURN
670!
680! Eingabeschleife
690!
700 IF INKEY$<>"" THEN 700
710 X$=INKEY$ : IF X$ ="" THEN 710
720 RETURN
730!
740! Grafik
750!
760 PRINT AT(24,0);""
770 PRINT AT(29,0);""
780 PRINT AT(31,0);"R"
790 X=TYP :Z=2 :W=1
800 Y=1+2*(X/2-INT(X/2))
810 X=INT(X/2)
820 PRINT AT(31,Z-1);W :W=W+1
830 ON Y GOSUB 880,920
840 IF X>0 THEN 800
850 PRINT AT(24,Z-2);" "
860 PRINT AT(29,Z-2);" "
870 RETURN
880 PRINT AT(24,Z);""
890 PRINT AT(29,Z);""
900 Z=Z+3
910 RETURN
920 PRINT AT(24,Z);""
930 PRINT AT(25,Z);""
940 PRINT AT(26,Z);""
950 PRINT AT(27,Z);""
960 PRINT AT(28,Z);""
970 PRINT AT(29,Z);""
980 Z=Z+2
990 RETURN
1000!
1010!
1020 DOKE 27,-4384 :DOKE 29,-4096: POKE 35,32 :CALL*F50B : RETURN
1030!
1040!
1050 PRINT: PRINT "Neue Berech- nung ((J)/N) ";
1060 GOSUB 700
1070 IF X$="N" THEN :WINDOW :END
1080 TYP=T1: E=E1
1090 PRINT :PRINT :PRINT "Die alten Werte ((J)/N)";
1100 GOSUB 700
1110 IF X$<>"N" THEN : GOSUB 760: GOTO 1330
1120 FOR I=0 TO 8 :ZW(I)=0 :NEXT
1130 WINDOW 9,31,0,31 :CLS : WINDOW 9,22,0,31
1140 PRINT "Normreihe :" :PRINT
1150 PRINT " * E6 ........ 1"
1160 PRINT " * E12 ........ 2"
1170 PRINT " * E24 ........ 3"
1180 PRINT " * E48 ........ 4"
1190 PRINT " * E96 ........ 5"
1200 GOSUB 700: X=VAL(X$) :X$="" : IF X<1 OR X>5 THEN 1200
1210 E=2^X*3 :E1=E :PRINT
1220 PRINT AT(9,13);"E",E
1230 INPUT "Zielwert (Ohm):";X$
1240 IF X$="" THEN WID=W1 :ELSE : GOSUB 570: WID=X :W1=X
1250 PRINT
1260 INPUT "Toleranz ( % ):";TLR
1270 PRINT
1280 INPUT "Netzwerktyp :";TYP: T1=TYP
1290 IF TYP<1 OR TYP>63 THEN 1280
1300 GOSUB 760
1310 PRINT :PRINT "In Ordnung ((J)/N) ?";: GOSUB 700: PRINT
1320 IF X$="N" THEN : GOSUB 1020: GOTO 1270
1330 J=0
1340 FOR I=0 TO 95 STEP 96/E : VNW(J)=NW(I)/100 :J=J+1 : NEXT I
1350 CLS :WINDOW 9,31,19,31
1360 PRINT AT( 9,0);"Stueckliste": PRINT AT(10,0);"-----------"
1370 REST=WID :I=0
1380 IF WID*TLR/100>=REST THEN : GOTO 1690
1390 I=I+1
1400 PAR=TYP/2-INT(TYP/2) : TYP=INT(TYP/2)
1410 IF TYP =0 THEN 1540
1420 IF PAR<>0 THEN 1480
1430 GOSUB 250
1440 RI(I)=UNW
1450 GOSUB 400
1460 IF MW>=REST THEN :PRINT : PRINT "Widerstand zu gross": GOTO 1440
1470 RI(I)=MW :REST=REST-RI(I): RJ(I)=RI(I):GOTO 1380
1480 GOSUB 250
1490 RI(I)=OBW :GOSUB 400
1500 IF MW<=REST THEN :PRINT : PRINT "Widerstand zu klein": GOTO 1490
1510 RI(I)=MW :X=1/REST-1/RI(I) : IF X=0 THEN 1690
1520 REST=1/X
1530 RJ(I)=-RI(I) :GOTO 1380
1540 GOSUB 250
1550 IF OBW-REST<REST-UNW THEN : RI(I)=OBW : ELSE : RI(I)=UN
1560 GOSUB 400
1570 RI(I)=MW :RGES=RI(I)
1580 IF I-1>0 THEN I=I-1 : GOSUB 650: GOTO 1580
1590 CLS
1600 PRINT "Rsoll :"; : Y=WID :GOSUB 500: PRINT X;X$: PRINT
1610 PRINT "Rist :"; : Y=RGES:GOSUB 500: PRINT X;X$: PRINT
1620 ABF=RGES-WID : PRINT "Abs. Fehler: ";
1630 Y=ABF :GOSUB 500: PRINT X;X$: PRINT
1640 REL=(RGES/WID-1)*100 : PRINT "Rel. Fehler: ";
1650 PRINT STR$(REL); "%" : PRINT
1660 IF ABS(REL)<TLR THEN PRINT "Toleranz eingehalten" : GOTO 1050
1670 PRINT "Ausserhalb der Toleranz" :PRINT
1680 GOTO 1050
1690 PRINT :PRINT "Genauigkeit bereits erreicht"
1700 PRINT :PRINT "Evt. einfachere NW ueberpruefen!"
1710 PRINT :PAUSE 30 :GOTO 1570
