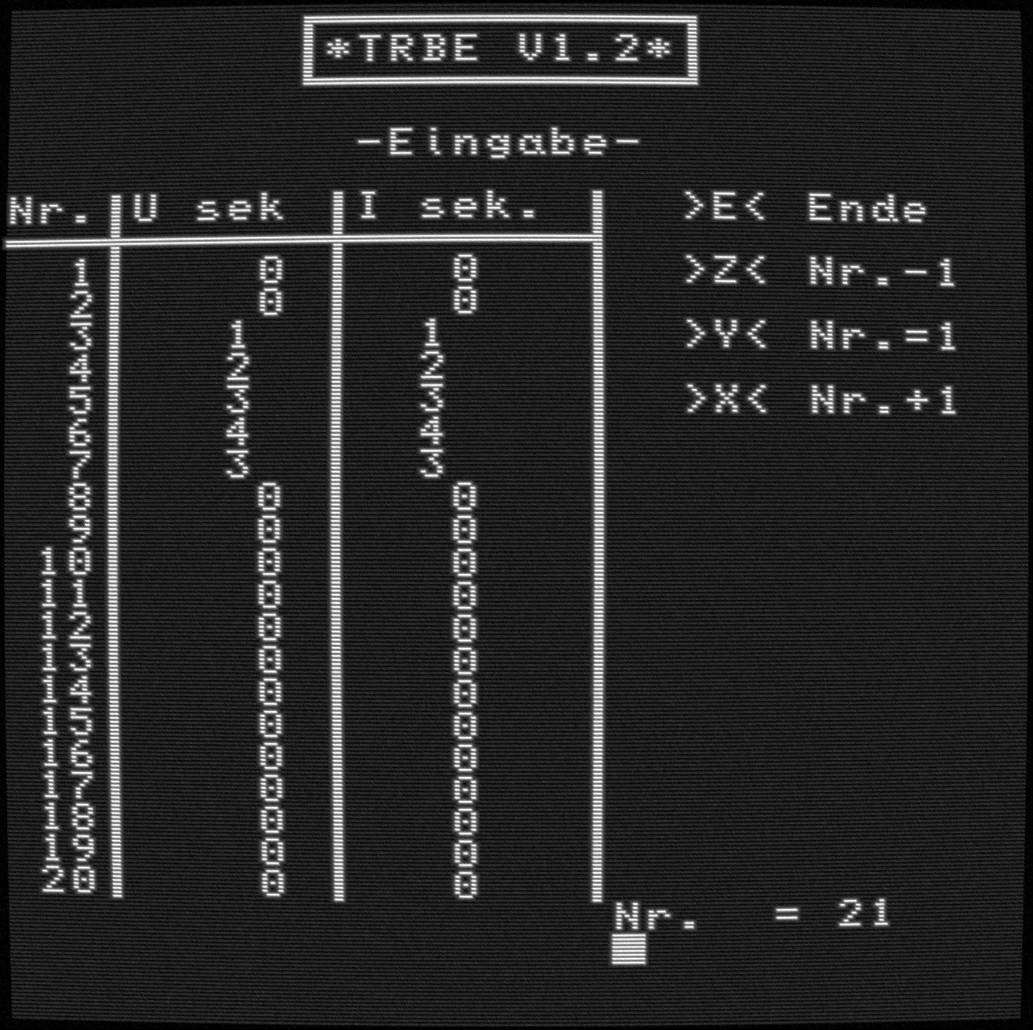

Zeichensatz UTF-8+Z1013()+CTRL()-ohne Umlaute(äöüß) 10 CLS:CLEAR 256 15 PRINT "Copyright:Gerd Morawsky" 20 PRINT TAB(10)"Max-Planck-Str.39" 25 PRINT TAB(10)"Gommern 3304" 30 X=24 35 DIM US(X),IS(X),NS(X),DS(X),RS(X) 40 PRINT 45 FOR X=0 TO 31:PRINT CHR$(199); 50 NEXT X 55 PRINT:PRINT 60 PRINT " " 65 FOR X=1 TO 2 70 PRINT " ":NEXT X 75 PRINT " " 80 FOR X=1 TO 2 85 PRINT " ":NEXT X 90 PRINT " ":PRINT:PRINT 95 PRINT SPC(10)" " 100 PRINT SPC(10)" " 105 PRINT SPC(10)" " 110 PRINT SPC(10)" " 115 PRINT SPC(10)" " 120 PRINT SPC(10)" " 125 PRINT SPC(10)" " 130 PRINT SPC(10)" " 135 PRINT SPC(10)" " 140 PRINT SPC(10)" " 145 PRINT SPC(10)" " 150 PRINT SPC(10)" " 155 PRINT:PRINT 160 GOSUB 170 165 GOSUB 190:GOTO 215 170 PRINT AT(30,0);" >Enter< >Stop<" 175 T$=INKEY$:IF T$=""THEN GOTO 175 180 IF T$<>"S"THEN RETURN 185 CLS:END 190 CLS 195 PRINT SPC(9)"" 200 PRINT SPC(9)"*TRBE V1.2*" 205 PRINT SPC(9)"" 210 RETURN 215 PRINT:PRINT " Primaerspannung UP=220V" 220 PRINT:PRINT " Netzfrequenz = 50Hz" 225 PRINT:PRINT " moegliche Transformatortypen" 230 PRINT " ":PRINT 235 PRINT " Texturblech LL :30/10-90/50":PRINT 240 PRINT " max.sek.Leistung :520 V/A":PRINT 245 PRINT " Dynamoblech LL :30/10-90/50":PRINT 250 PRINT " max.sek.Leistung :400 V/A":PRINT 255 PRINT " Dynamoblech M : 42-102b":PRINT 260 PRINT " max.sek.Leistung :180 V/A":POKE-4416,32:GOSUB 170 265 GOSUB 190 270 PRINT:PRINT SPC(11)"-Eingabe-":PRINT 275 PRINT "Nr.U sek I sek. >E< Ende" 280 PRINT " " 285 PRINT SPC(21)">Z< Nr.-1":PRINT 290 PRINT SPC(21)">Y< Nr.=1" 295 PRINT:PRINT SPC(21)">X< Nr.+1" 300 FOR NR=1 TO 24 305 WINDOW 28,31,19,31 310 CLS 315 PRINT "Nr. ="NR 320 T$=INKEY$ 325 IF T$="E"THEN GOTO 520 330 IF T$="N"THEN GOTO 310 335 IF T$="Z"THEN GOTO 355 340 IF T$="X"THEN GOTO 360 345 IF T$=""THEN GOTO 320 350 GOTO 365 355 NR=NR-1:CLS:GOTO 315 360 NR=NR+1:CLS:GOTO 315 365 IF T$="Y"THEN GOTO 300 370 INPUT "Usek.=";US(NR) 375 INPUT "Isek.=";IS(NR) 380 IF US(NR)*IS(NR)>520 THEN GOTO 470 385 IF IS(NR)>999 THEN GOTO 485 390 IF US(NR)>9999 THEN GOTO 500 395 US(NR)=(INT(US(NR)*10+0.5))/10 400 IS(NR)=(INT(IS(NR)*1000+0.5))/1000 405 N$=STR$(NR):N=LEN(N$) 410 LU=LEN(STR$(INT(US(NR)))) 415 IF US(NR)<1 THEN LU=LU-1 420 LI=LEN(STR$(INT(IS(NR)))) 425 IF IS(NR)<1 THEN LI=LI-1 430 X=7+NR 435 PRINT AT(X,3-N);NR 440 PRINT AT(X,8-LU);US(NR) 445 PRINT AT(X,14-LI);IS(NR) 450 Z=-4897+32*NR 455 POKE Z+4,161:POKE Z+11,161:POKE Z+19,161 460 NEXT NR 465 GOTO 520 470 CLS:PRINT "Sekundaerl.":PRINT 475 PRINT "zu gross!!!" 480 FOR Z=1 TO 900:NEXT Z:GOTO 310 485 CLS:PRINT "Wert fuer den"; 490 PRINT "sek.Strom" 495 PRINT "max.999A!!!":GOTO 480 500 CLS:PRINT "Wert fuer die"; 505 PRINT "sek.Spannung" 510 PRINT "max.9999V!!!" 515 GOTO 480 520 FOR Z=1 TO NR-1 525 PS=PS+US(Z)*IS(Z) 530 NEXT Z 535 IF PS>520 THEN GOTO 470 540 IF PS=<520 THEN Z=1 545 IF PS=<400 THEN Z=2 550 IF PS=<180 THEN Z=3 555 T$(1)="T":T$(2)="D":T$(3)="M":RESTORE 560 FOR N=1 TO Z 565 READ TR$(N),PT(N),B(N),SP(N),SS(N),I0(N),AE(N),LP(N) 570 READ LS(N),W(N),BW(N) 575 IF LEFT$(TR$(N),1)<>T$(N)THEN GOTO 565 580 IF PS>PT(N)THEN GOTO 565 585 NEXT N 590 WINDOW:CLS:GOSUB 190 595 FOR N=1 TO Z 600 PRINT:PRINT ">"N "<"TR$(N) 605 NEXT N 610 PRINT:INPUT "Transform.Typ=";N 615 TR$=TR$(N):PT=PT(N):B=B(N):SP=SP(N):SS=SS(N):I0=I0(N) 620 AE=AE(N):LP=LP(N):LS=LS(N):W=W(N):BW=BW(N) 625 PP=PS/W 630 IP=SQR((PP/220)*(PP/220)+(I0*I0)):IP=(INT(IP*100+0.5))/100 635 NP=220*(2+W)/3*(1/(4.44*B*AE*50*10^-6)) 640 DP=1.13*SQR(IP/SP) 645 DP=(INT(DP*100+1))/100 650 RP=27.1*10^-6*((NP*LP)/(DP*DP)) 655 NP=(220-IP*RP)*(1/(4.44*B*AE*50*10^-6)) 660 NP=INT(NP+1) 665 FOR Z=1 TO NR-1 670 NS(Z)=US(Z)*(3/(2+W))*(1/(4.44*B*AE*50*10^-6)) 675 DS(Z)=1.13*SQR(IS(Z)/SS) 680 DS(Z)=(INT(DS(Z)*100+1))/100 685 RS(Z)=27.1*10^-6*((NS(Z)*LS)/(DS(Z)*DS(Z))) 690 NS(Z)=(US(Z)+IS(Z)*RS(Z))*(1/(4.44*B*AE*50*10^-6)) 695 NS(Z)=INT(NS(Z)+1) 700 NEXT Z 705 GOSUB 190 710 PRINT "Typ:"TR$:PRINT 715 PRINT "NP:"NP "wdg";TAB(13)"DP:"DP;TAB(23)"IP:"IP 720 PRINT "P.sek.="PS "V/A" 725 PRINT 730 FOR X=1 TO NR-1 735 L1=LEN(STR$(NS(X))) 740 L2=LEN(STR$(INT(DS(X)))) 745 IF DS(X)<1 THEN L2=L2-1 750 L3=LEN(STR$(X)) 755 PRINT "NS";TAB(5-L3);X;TAB(10-L1);NS(X);TAB(14);"DS:"; 760 PRINT TAB(20-L2);DS(X) 765 NEXT X:PS=0 770 INPUT "Anfang >A<";A$ 775 IF A$="A"THEN GOTO 265 780 CLS:END 785 DATA TLL30/10,4.5,1.5,9.5,7.4,0.017,96,55,65,0.45,27 790 DATA TLL30/16,10,1.6,7.6,5.4,0.028,147,67,77,0.65,27 795 DATA TLL39/13,17,1.75,6.4,4.1,0.05,148,71,85,0.75,36 800 DATA TLL39/20,26,1.75,6,4.3,0.05,252,85,100,0.78,36 805 DATA TLL48/16,43,1.75,5.4,3.6,0.065,254,84,104,0.82,45 810 DATA TLL48/25,60,1.75,4.3,3.7,0.14,385,103,123,0.86,45 815 DATA TLL60/20,90,1.75,3.6,2.9,0.105,400,105,129,0.88,57 820 DATA TLL60/30,130,1.75,3.3,2.7,0.21,590,125,149,0.9,57 825 DATA TLL75/25,210,1.75,3,2.8,0.22,615,133,163,0.92,71 830 DATA TLL75/40,275,1.75,2.8,2.5,0.4,975,163,193,0.93,71 835 DATA TLL90/30,400,1.75,2.2,2.6,0.35,880,156,192,0.94,85 840 DATA TLL90/50,520,1.75,1.9,2.2,0.75,1430,196,232,0.95,85 845 DATA DLL30/10,3.8,1.3,6.9,3.7,0.015,96,55,65,0.43,27 850 DATA DLL30/16,6.4,1.3,7.1,3.1,0.03,147,67,77,0.6,27 855 DATA DLL39/13,16,1.45,5.7,3.3,0.037,148,71,85,0.7,36 860 DATA DLL39/20,19,1.45,5.3,2.6,0.083,252,85,100,0.75,36 865 DATA DLL48/16,34,1.45,4.4,2.9,0.063,254,84,104,0.8,45 870 DATA DLL48/25,45,1.45,4.1,2.3,0.136,385,103,123,0.82,45 875 DATA DLL60/20,75,1.45,3.4,2.5,0.108,400,105,129,0.85,57 880 DATA DLL60/30,92,1.45,3.2,2,0.198,590,125,149,0.88,57 885 DATA 75/20,160,1.45,2.6,2.1,0.198,615,133,163,0.9,71 890 DATA DLL75/40,210,1.45,2.3,1.7,0.31,975,163,193,0.91,71 895 DATA DLL90/30,330,1.45,2.1,1.9,0.238,880,156,192,0.92,85 900 DATA DLL90/50,400,1.4,1.8,1.5,0.327,1430,196,232,0.93,85 905 DATA M42,4,1.2,6,6,0.006,160,81,102,0.65,22 910 DATA M55,13,1.2,4.7,4.7,0.012,300,106,129,0.75,29 915 DATA M65,26,1.2,3.8,3.8,0.022,480,127,155,0.8,33 920 DATA M74,48,1.2,3.2,3.2,0.032,670,147,182,0.84,39 925 DATA M85,65,1.2,3,3,0.045,850,155,186,0.86,45 930 DATA M102a,125,1.2,2.6,2.6,0.07,1100,179,167,0.88,55 935 DATA M102b,180,1.2,2.4,2.4,0.105,1600,214,252,0.89,55
